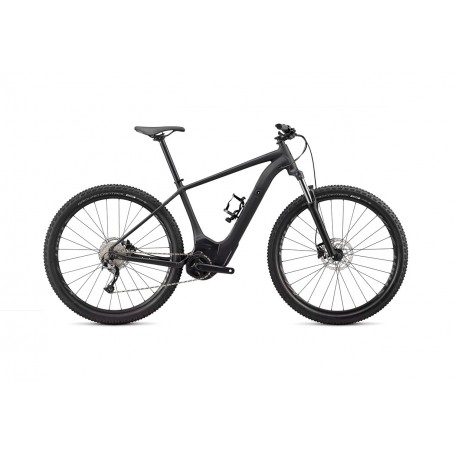

Specialized Turbo Levo Hardtail 2020 XS Bike View larger

Specialized Turbo Levo Hardtail 2020 XS Bike

02S95120-7301

New

Specialized Turbo Levo Hardtail bike. 2020 season size XS.

More details

This product is no longer in stock

2 147,93 €

Data sheet

GenderMan
SeasonTemporada 2020
KindE-Bike
CollectionNueva temporada
Wheel29
FamilyLevo
FrameAluminium

More info

Specialized Turbo Levo Hardtail bike. 2020 season size XS.

Motor 1.2 E offers power naturally, it is a bicycle designed to make the road faster. The Turbo Levo Hardtail has all the speed and agile driving in addition to an easy adjustment, ultra-short pods and low bottom bracket.
The 1.2 E engine of the Turbo Levo Hardtail is soft and quiet, adds power to your pedals and allows you to climb steeper paths, you can adjust the power output to save energy and get a range of many kilometers.

Our custom motors also have coupling, so you get immediate power at all times, the M5 premium aluminum frame is lightweight, sturdy, agile and safe, smoothly and naturally assisted and 100mm suspension, SR suspension fork Suntour XCM32 29er.

Technical specifications:

  • TABLE: Specialized M5 Premium Aluminum, Geometry 29 Trail HT, integrated diagonal tube battery, internal wiring, Command Post internal guidance, 148 mm spacing
  • FORK: SR Suntour XCM32, 47mm offset, thru axle 15x110mm, 100mm travel
  • FRONT WHEEL: Hand-built wheel assembly
  • REAR WHEEL: Hand-built wheel assembly
  • FRONT HUB: Specialized, sealed bearings, 15x110 mm, 28 spokes
  • REAR HUB: Specialized, sealed bearings, 12x148 mm thru axle, 28 spokes
  • RADIOS: Stainless steel, 14g
  • RIMS: Specialized XC 29, internal width 25mm, disc specific
  • CAMERAS: Standard Presta Valve
  • PNEUMATIC DEL .: Ground Control, GRID housing, GRIPTON® compound, 2Bliss Ready, 29x2.3 "
  • REAR TIRE: Ground Control, GRID housing, GRIPTON® compound, 2Bliss Ready, 29x2.3 "
  • PEDALIER: 2D cold forged aluminum, custom offset, 165mm
  • DISHES: 32T, steel ring
  • CHANGE CONTROLS: Shimano Relief, 9-speed, optical gear display
  • CHANGE: Shimano Relief, Shadow Design, SGS cage, 9-speed
  • CASE: Shimano HG201, 9-speed, 11-36
  • CHAIN: KMC e9S.NPBK, e-bike chain, 9-speed with Missing Link ™
  • FRONT BRAKE: Shimano BR-MT200, hydraulic disc, 180 mm
  • REAR BRAKE: Shimano BR-MT200, hydraulic disc, 180 mm
  • HANDLEBAR: Specialized Trail, 6061 aluminum, 8º of recoil, 6º of elevation, 27mm height, XS 720mm, S-XL 750mm, 31.8mm
  • GRIPS: Specialized Body Geometry XC, lock
  • POWER: Specialized, 3D-forged aluminum, 4 screws, 6º elevation, 31.8mm
  • SADDLE: Body Geometry Myth 155 XS, Body Geometry Henge 143 S / M / L / XL, steel rails
  • SEAT SCISSORS: Specialized 2 screws in head, forged aluminum, 8mm offset, micro-adjustment, 30.9mm
  • HUG. SADDLE: With screw, aluminum 34.9 mm
  • SWAT: Specialized Z-Cage w / EMT Cage Mount MTB Tool
  • MOTOR: Specialized 1.2 E, custom Rx Street Tuned motor, 250W Nominal
  • UI / REMOTE: Specialized Handlebar Trail Remote w / walk-assist
  • BATTERY: Specialized M1-400, Integrated Trail Display, ANT + / Bluetooth® module, 400Wh
  • CHARGER: Specialized custom charger, 42V2A with Rosenberger plug, with AC power cord included
  • WIRING HARNESS: Specialized custom cable collector
  • PEDALS: Specialized Dirt

* Specifications are subject to change without notice

Size: (XS)

  • Bottom Bracket Height: 308mm
  • Upper tube height: 688mm
  • Bottom Bracket: 55mm
  • Crank Length: 165mm
  • Wheelbase: 1121mm
  • Handlebar Width: 720mm
  • Fork Length: 510mm
  • Seat Tube Length, Butt Center: 390mm
  • Upper Tube Length, Hrz .: 568mm
  • Pipe Length: 100mm
  • Sheath Length: 450mm
  • Reach: 385mm
  • Saddle Width: 155mm
  • Seatpost Length: 350mm
  • Stack: 598mm
  • Stem Length: 45mm
  • Seat Tube Angle, Effective: 74 °
  • Pipe Angle: 67 °
