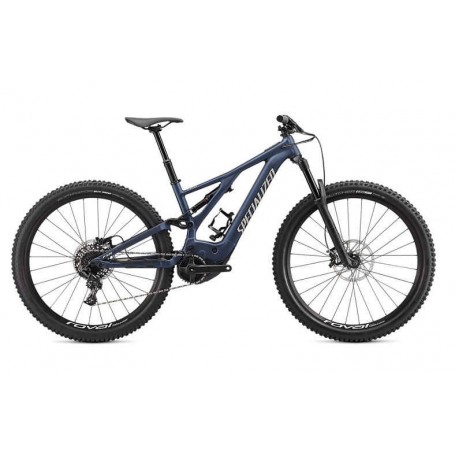

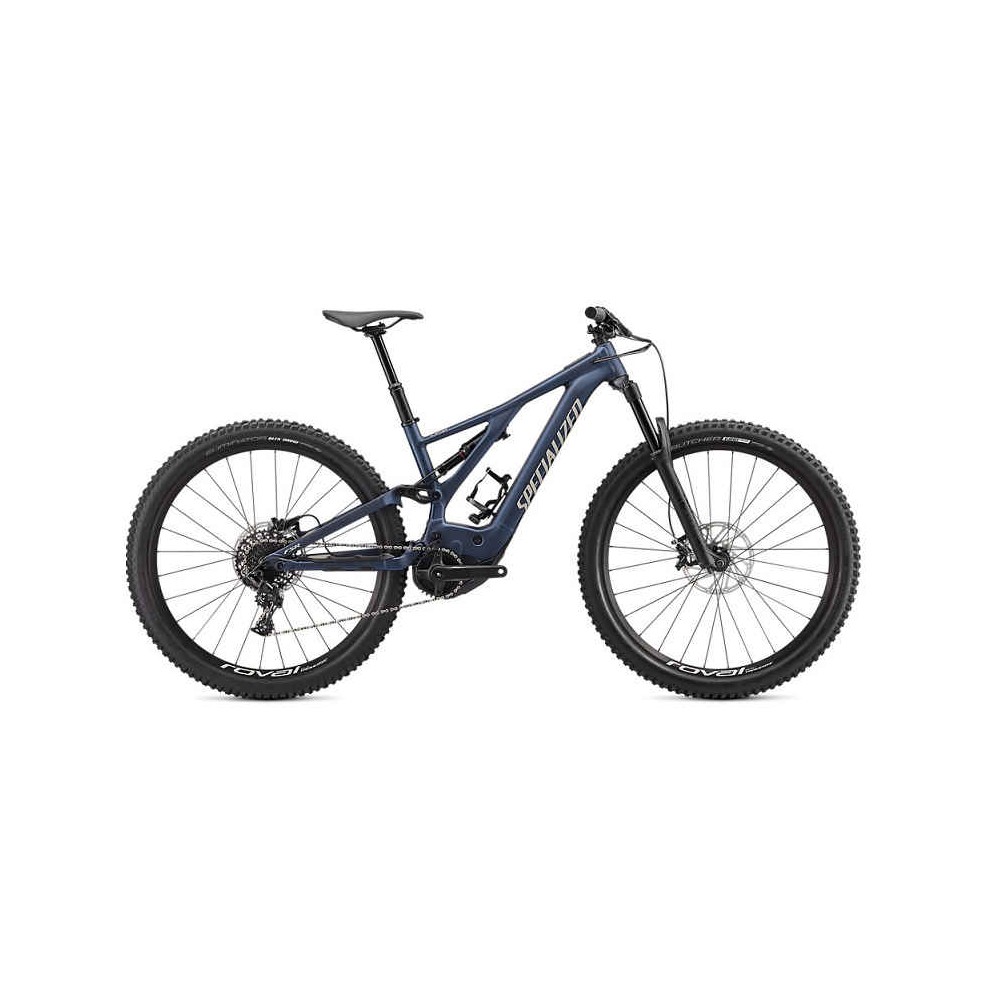

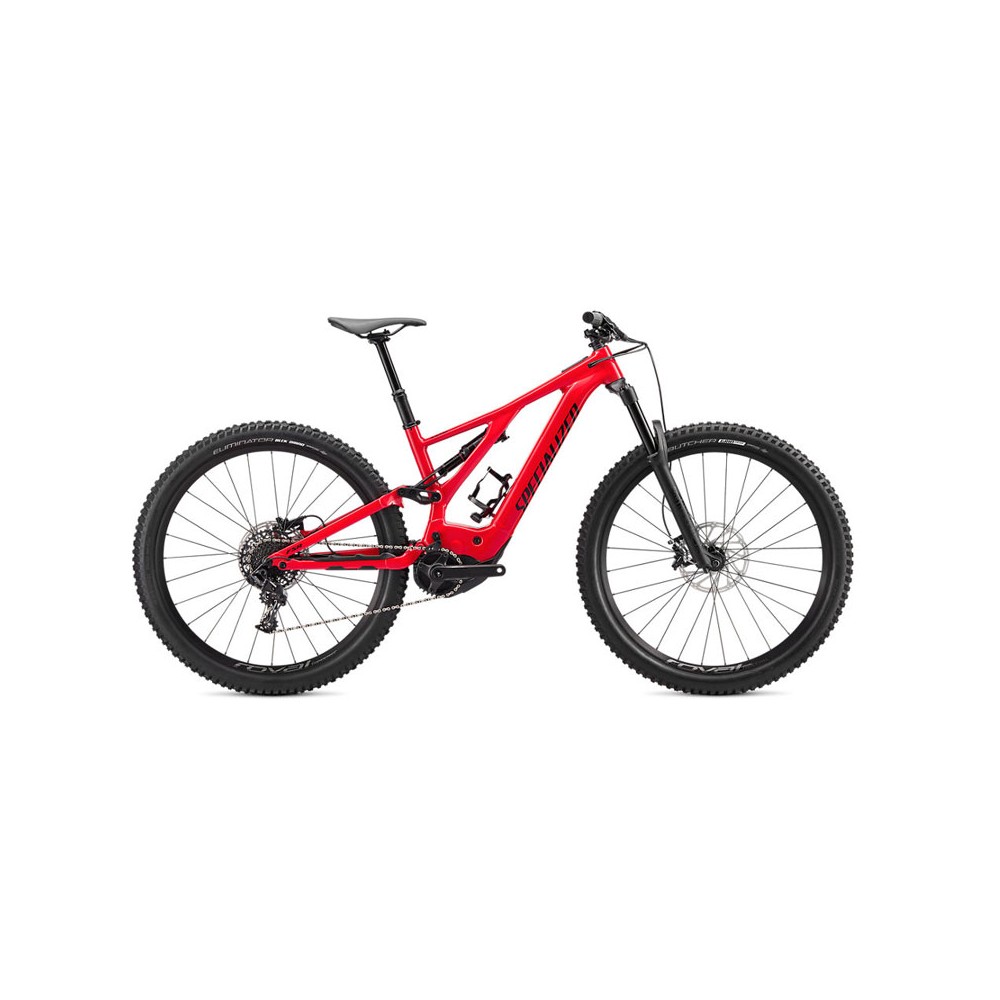

Specialized Turbo Levo 29 NB 2020 Bike

Specialized Turbo Levo 29 NB bike, 2020 season and with 29 "wheels. Available in several sizes.

The new Turbo Levo offers the most advanced frame, motor and battery technology for all users. We have taken our M5 aluminum frame and the smoothest and most powerful engine on the market, and combined them with the best components and brakes.

The Turbo Levo is a trail bike, in which we have increased autonomy, keeping the pods short and the center of gravity low. In addition, we have relaxed the steering angle to descend more safely and improve the saddle angle for climbs.

The Levo Specialized 2.1 engine amplifies your pedaling input by up to 410%. And in autonomy, it offers a wide range of scope. In addition, with our Mission Control application you can control battery management, ensuring that the battery will last as long as you need it. The M5 aluminum side arm frame offers quality and ride control, the engine is smoother and more powerful and 150mm front and rear suspension, from RockShox.

Technical specifications:

• TABLE Specialized M5 Premium Aluminum, 29 Trail Geometry, integrated diagonal tube battery, internal wiring, Command Post internal guidance, 148 mm spacing, sealed bearings, 150 mm travel
• FORK RockShox 35 29, DebonAir, Motion Control cartridge, 51mm offset, thru axle 15x110 mm
• RockShox Deluxe Select SHOCK ABSORBER with custom air chamber ,, 52.5x210mm
• FRONT HUB Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
• REAR HUB Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
• DT Swiss Industry RADIOS
• RIMS Roval Traverse 29, without aluminum flange, internal width 30mm, tubeless ready
• CAMERAS Standard Presta Valve
• TIRE OF. Butcher, GRID TRAIL housing, GRIPTON® compound, 2Bliss Ready, 29x2.6 "
• REAR TIRE Eliminator, BLCK DMND housing, 2Bliss Ready, 29x2.3 "
• PEDALIER Praxis, 2D cold forged aluminum, custom offset, 165mm
• 32T PLATES, custom steel
• SRAM S700 CHANGE CONTROLS, one-click button
• SRAM NX CHANGE, 11-speed
• SRAM CASE PG-1130, 11-speed, 11-42
• KMC X11ET CHAIN, 11-speed w / Missing Link ™
• FRONT BRAKE SRAM Level T, hydraulic disc, 4-piston caliper, 200 mm
• REAR BRAKE SRAM Level T hydraulic disc, 2 piston caliper, 200mm
• HANDLEBAR Specialized Trail, 6061 aluminum, 8º recoil, 6º elevation, 27mm height, 780mm, 31.8mm
• GRIPS Specialized Sip grip, half-waffle, S / M: regular thickness, L / XL: XL large thickness
• POWER Specialized Trail, 3D forged aluminum, 4 screws, 6º elevation
• SADDLE Body Geometry Myth 155 XS, Body Geometry Henge 143 M / L / XL, steel rails
• SEAT SEAT TranzX dropper, 34.9mm, XS-S: 100mm, M: 120mm, L / XL: 150mm travel
• HUG. Saddle Specialized screw type, aluminum, 38.6mm
• SWAT Specialized Z-Cage w / EMT Cage Mount MTB Tool
• Specialized 2.1 MOTOR, custom Rx Trail, nominal 250W
• UI / REMOTE Specialized TCU, 10-LED charging status, 3-LED Cyclist Assistance Modes, ANT + / Bluetooth®
• BATTERY Specialized M2-500, integrated battery with protector, 500Wh
• CHARGER Custom charger, 42V4A with Rosenberger plug
• WIRING HARNESS Custom Specialized Cable Collector

Measurements:

(Size M / L)

• Bottom Bracket Height: 347.5mm / 347.5mm
• Fork Advance: 111mm / 111mm
• Forward / Reverse Fork: 51mm / 51mm
• Bike Standover Height: 760mm / 781mm
• Bottom Bracket: 27mm / 27mm
• Crank Length: 165mm / 165mm
• Front Center: 749mm / 781mm
• Wheelbase: 1202mm / 1235mm
• Handlebar Width: 780mm / 780mm
• Long. Seat Tube: 410mm / 455mm
• Fork Length: 560mm / 560mm
• Upper Tube Length, Hrz .: 600mm / 631mm
• Pipe Length: 95mm / 125mm
• Sheath Length: 455mm / 455mm
• Reach: 435mm / 455mm
• Saddle Width: 143mm / 143mm
• Seatpost Length: 456mm / 456mm
• Stack: 606mm / 634mm
• Stem Length: 45mm / 45mm
• Pipe Angle: 66.04 ° / 66.04 °
• Seat Tube Angle: 74.79 ° / 74.48 °

* Specifications are subject to change without notice
